Strip cutter STC400

Ευέλικτη εφαρμογή The circular blade cutting machine STC 400 is suitable for a big variety of slicing applications, e.g. slicing of fresh boneless fish products. User friendly operation

The operator puts the cuts on the continuously driven infeed conveyor belt. They pass the circular cutting roller and within seconds, they are sliced to regular portions of consistent thickness

Large choice of cutting rollers

The STC 400 is supplied without cutting rollers, as they have to be ordered separately according to individual cutting needs. Different rollers are necessary for different slice thicknesses, as the distance between the circular blades determines the cutting width, starting with 6 mm.

Short setup times for high operational availability

Time-saving tool-free mounting and removal of machine parts for routine sanitation and upkeep

High safety standards

For the safe mounting and removal of the circular blade roller, its holding device can be locked in a special setup position.
Special safety handles for easy and safe removal of the cutting roller are included to allow cleaning and blade changes.
For safe cutting roller cleaning, it is kept in a special cleaning box.
Special protection covers on infeed and discharge conveyor belt according to current EU-regulations.

Technical Specifications

Total cutting width	283 mm
Max. product thickness	~95 mm depending on the product
Dimensions (LxWxH)	2185x766x1282 mm
Power	1,5 kW
Weight	265 kg

Additional information

STC 400 (original page)

Marel

Fish Fixed Weight Marel Portion cutting

The I-CUT 11 is suitable for processing non-frozen boneless fish products to fixed weight and/or uniform dimensions. The Marel cutting machine offers high speed and precision in combination with modern cutting processing software.

Special Features

High-speed portioning in a 90^o
Advanced laser vision system with
High precision 200 Hz product recognition camera
Easy-to-operate latest generation touchscreen
Conveyor belt with adjustable operation speed
Cutting knife with servo motor
Made of stainless steel and materials suitable for food processing

Technical Specifications

Maximum product dimensions (LxWxH)	800x250x100 mm
Maximum machine capacity	480 cuts/min
Belt Speed	10-340 mm/s
Machine dimensions (LxWxH)	2700x1000x1650 mm

Additional information

I-Cut 11 (original page)

BROCHURE

Marel

Fish Marel Portion cutting

Multi Angle Slicer MSC 55 MA

The MSC 55 MA is a slicer capable of cutting at different angles suitable for fresh or smoked product such as salmon and other fish species respectively in size and texture. It is single line and can handle fresh and smoked products providing flexibility.

Special Features

High slicing quality
User friendly operation
No meat residuals on the product
Easy to clean

Technical Specifications

Maximum machine capacity	90 cuts/min
Cutting angle	8^ο – 70 ^ο
Max cutting width:	205 mm
Max. product length	700 mm
Max. product height	45 mm
Cutting width	from 2 mm
Power	1,6 kW
Dimensions (LxWxH)	2090x810x1460 mm
Weight	305 kg

Additional information

Multi Angle Slicer MSC 55 MA (original page)

BROCHURE

Marel

Fish Fixed Weight Fixed Weight Fixed Weight Marel Portion cutting Portion cutting Portion cutting Poultry Red meat

I-Cut 56

The I-CUT 56, is suitable for processing fresh chicken, meat and boneless fish products to a constant weight and/or uniform dimensions. The Marel cutting machine offers high speed and precision in combination with modern cutting processing software.

Special Features

Up to 600 cuts/minute
Adjustable v-belts to reduce product movement
Its advanced vision system makes a 360-degree scan of raw material
Easy-to-operate latest generation touchscreen
Hygienic design

Additional information

I-Cut 56 (original page)

Marel

Fish Marel Portion cutting

Multi Angle Slicer MSC 90 MA

The MSC 90 MA is a slicer capable of cutting at different angles suitable for fresh or smoked product such as salmon and other fish species similar in size and texture. It is single line and can handle fresh and smoked products providing flexibility.

Special Features

High slicing quality
More usable tail and head slices
User friendly operation
No meat residuals on the product
Easy to clean
Touchscreen

Technical Specifications

Maximum machine capacity	55 cuts/min
Cutting angle	10^ο – 70 ^ο
Max cutting width:	205 mm
Max. product length	750 mm
Max. product height	60 mm
Cutting width	2 – 60 mm
Power	1 kW
Dimensions (LxWxH)	3195x722x1359 mm
Weight	394 kg

Additional information

Multi Angle Slicer MSC 90 MA (original page)

BROCHURE

Marel

Fish Fixed Weight Marel Portion cutting

I-Cut 122

The I-CUT 122 is suitable for processing non-frozen fish products to fixed weight and/or uniform dimensions. The Marel cutting machine offers high speed and precision in combination with modern cutting processing software. The dual-lane I-CUT 122 offers one of the highest throughputs in the market and It can operate at 2000 cuts per minute per lane.

Special features

Made of stainless steel and materials suitable for food processing
Adjustable cutting angle per strip with available positions: 45° / 60° / 75° / 90°
Volume and weight determination system with laser and camera that ensures maximum accuracy
Hygienic design
Ability to control settings from the menu
Cutting knife with servo motor
Touch screen with user-friendly management interface

Additional information

I-Cut 122 (original page)

BROCHURE

Marel

Fish Marel Portion cutting

Multi Angle Slicer MSC 180 MA

The MSC 180 MA is a slicer capable of cutting at different angles suitable for fresh or smoked product such as salmon and other fish species similar in size and texture. It is double line and can handle fresh and smoked products providing flexibility.

Special Features

High slicing quality
More usable tail and head slices
User friendly operation
No meat residuals on the product
Easy to clean
Touchscreen

Technical Specifications

Maximum machine capacity	180 cuts/min
Cutting angle	8^ο – 70^ο
Max cutting width:	2×205 mm
Cutting width	from 2 mm
Power	1,6 kW
Dimensions (LxWxH)	2090x1030x1460 mm
Weight	330 kg

Additional information

Multi Angle Slicer MSC 180 MA (original page)

BROCHURE

Marel

Complete solutions Farmed Fish

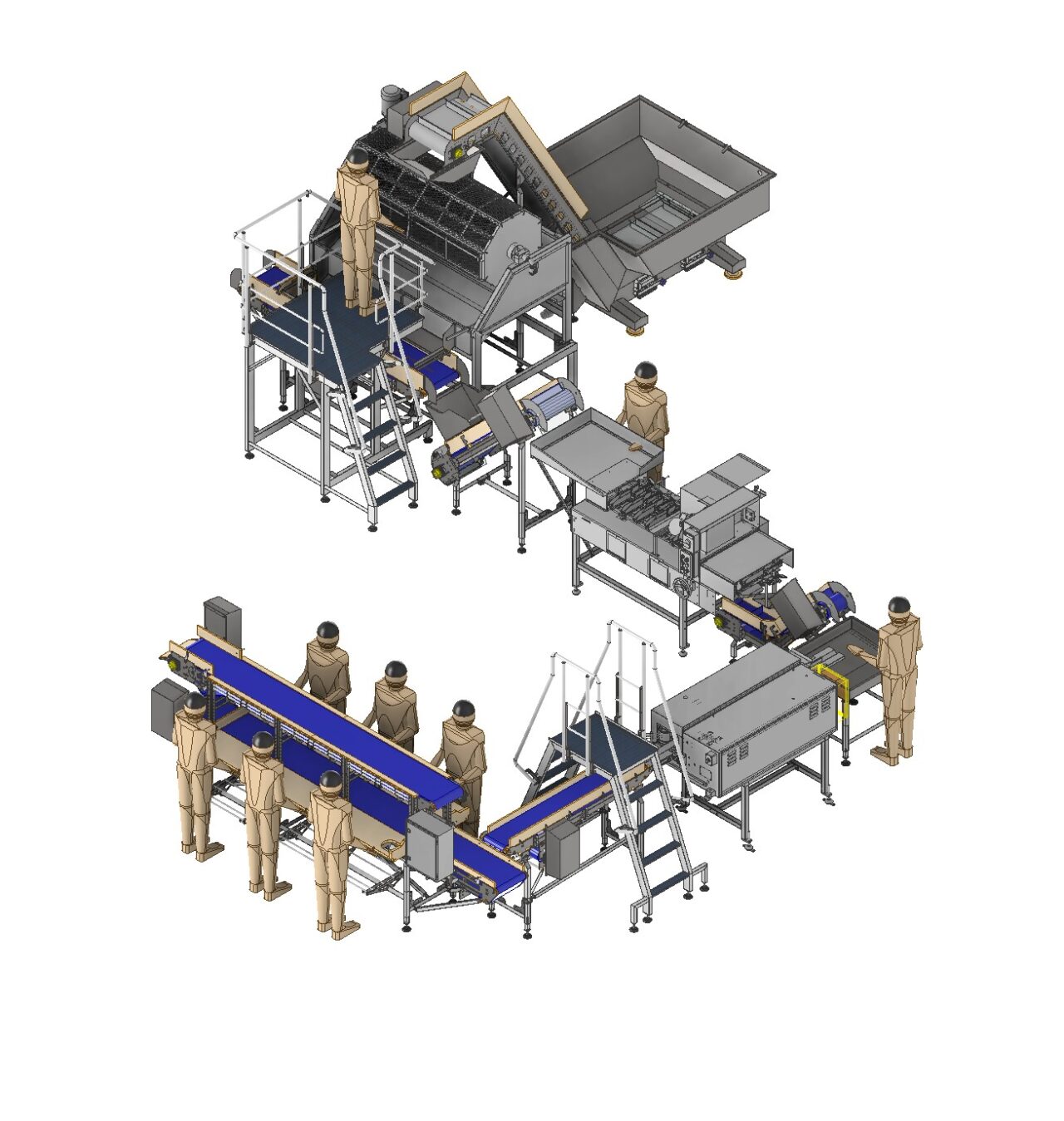

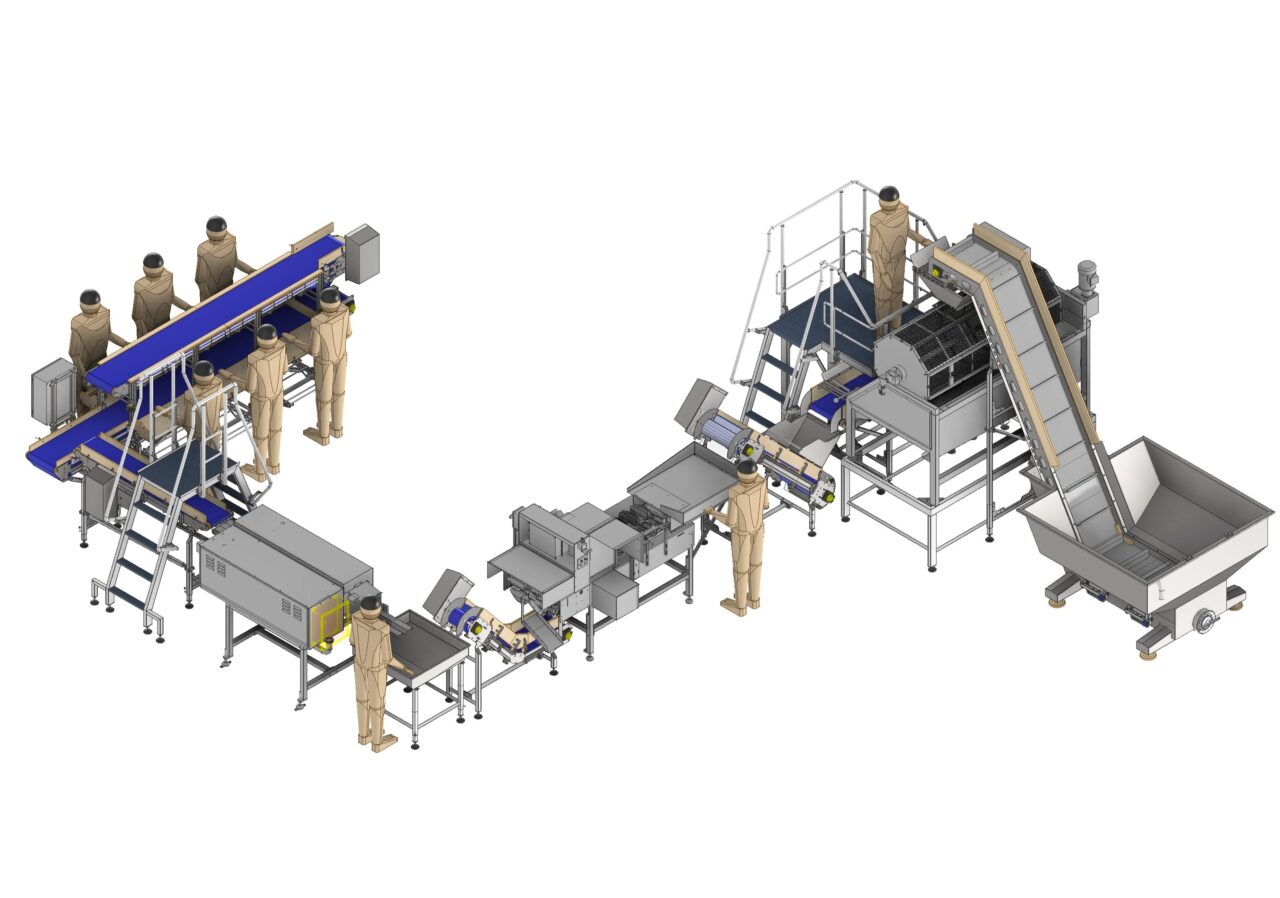

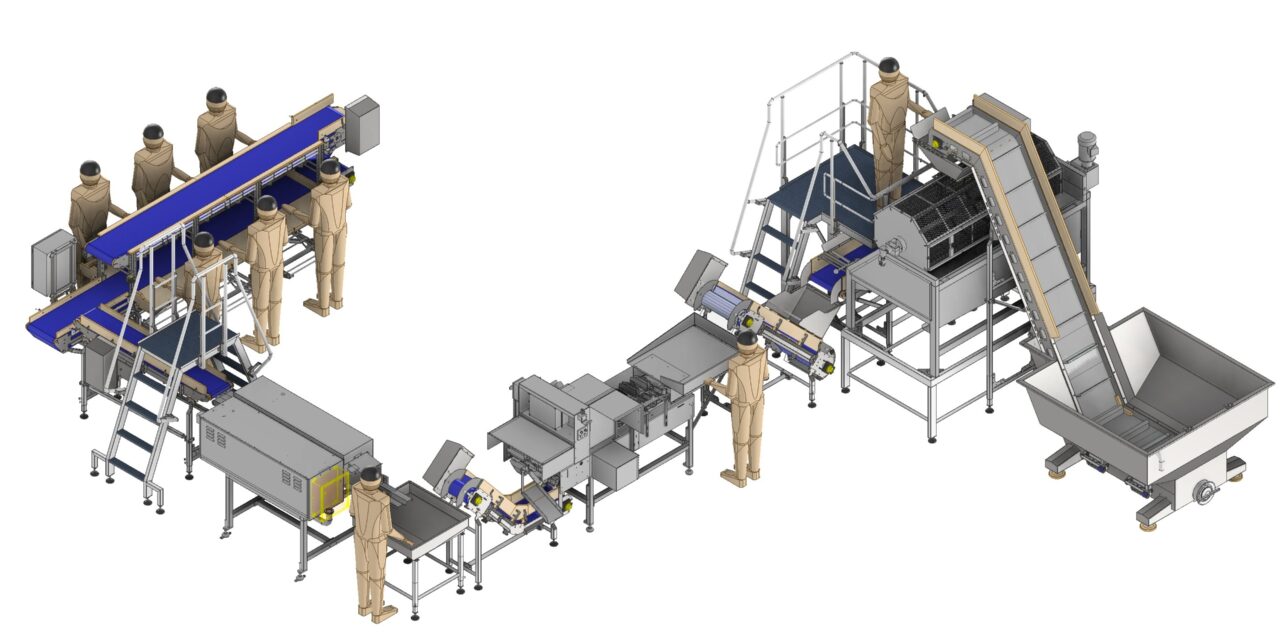

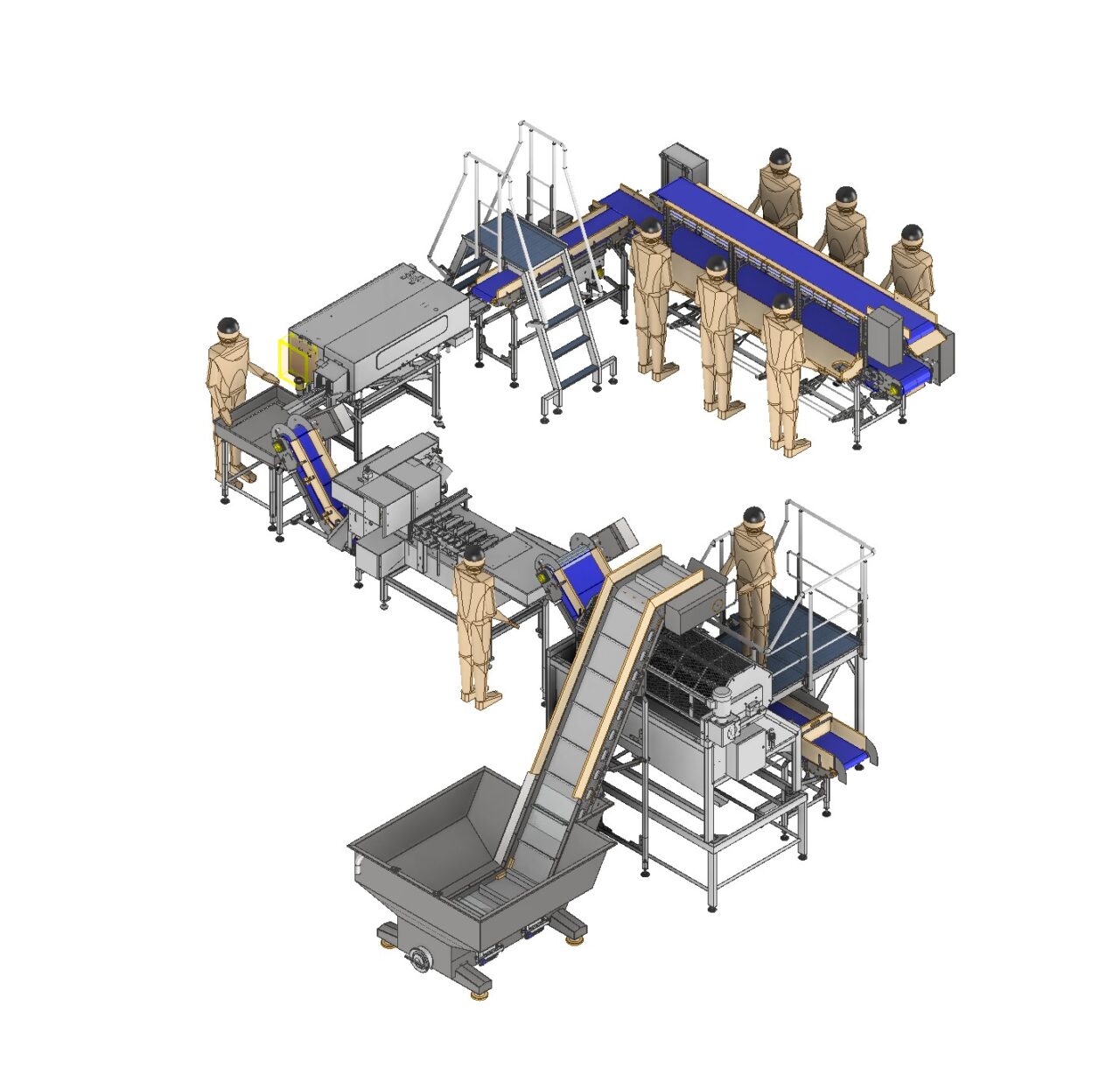

Complete filleting line

At MAKELIS we offer complete fillet production lines designed for maximum yield and product utilization. The line ensures ultra-fast, automated processing with absolute precision, maintaining premium fillet quality while minimizing waste.

Line Flow & Equipment

The production process unfolds in sequential, perfectly synchronized stages:

Tub tipper: For the safe, controlled, and effortless unloading of the products.
Washing tank: For the primary rinsing and feeding of the product.
Drum scaler – PISCES DS: Fast and efficient scaling.
Head cutting machine – PISCES HV: With ”V” cut for maximum meat retention
Filleting machine – PISCES FR: For the precise cutting and separatiopn of the fillet of the bone
Trimming line: For the final quality control and fillet cleaning

Depending on production demand, capacity, and specific requirements, each line is individually studied, designed, and manufactured by MAKELIS, offering a fully customized solution.

Complete solutions

Target Batcher Line

Complete semi-automatic fixed weight or pieces batching line .

Line Flow & Equipment

The production process unfolds in sequential, perfectly synchronized stages:

Gooseneck conveyor: For receiving products from a lower level and smoothly transferring them to the line
Infeed conveyor: Ensures a continuous product flow to the operators.
Platform: Stainless steel, anti-vibration structure for the safe and ergonomic positioning of the batcher.
Semi-automatic fixed weight bather – MAREL target batcher: The core system for the automatic creation of fixed weigh batches

The line configuration presented above is indicative. Depending on the specific needs, production demands and capacity, the final setup is individually studied, designed, and manufactured by MAKELIS, offering a fully customized solution.

Complete solutions

Complete grading line

Complete weighing, grading, and packaging line suitable for packing fish in fixed-weight styrofoam (EPS) boxes, such as sea bass, sea bream, corvina, and other species similar in size and texture. The line is the ideal solution for packaging fish at the highest speeds and with the greatest accuracy regarding the final weight of the boxes.

Line Flow & Equipment

The production process unfolds in sequential, perfectly synchronized stages:

Tub tipper: For the safe, controlled, and effortless unloading of the products
Washing tank: For the primary rinsing and feeding of the product.
Preg-grading table: For receiving the fish and the manual feed towards the Highspeed system
Highspeed infeed system – MAKELIS HSPEEDFV2: For the efficient, fast, and perfectly synchronized feeding of the grading machine.
Grader: Automate system for weighing and grading of fish
Quality control station: For the final quality check, the weighing of the box and the manual label placement

All necessary transport belts and systems are included for the interconnection and smooth operation of the entire line.

Depending on production demand, capacity, and specific requirements, each line is individually studied, designed, and manufactured by MAKELIS, offering a fully customized solution.
